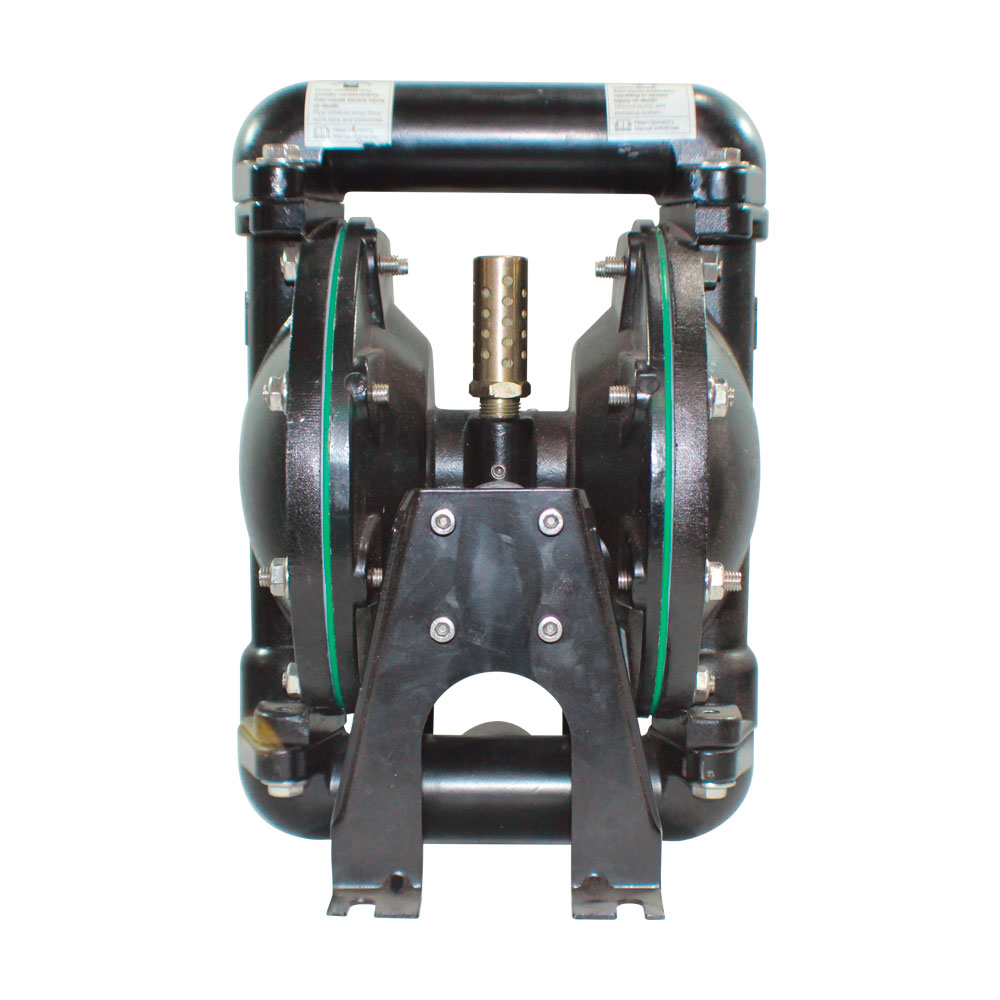

1″ (25 mm) Metallic Rubber Fitted Air Operated Double Diaphragm Pump

JDA Global - NOMAD - N666100 BOLTED

Specifications

Suction & Discharge Size:	FNPT 1″ (25mm) Inlet and Discharge
Porting Location:	Center Ported
Connection Types:	NPT
Air Inlet & Air Exhaust Size:	1/4″

Capabilities

Maximum Flow Rate:	35 gpm (132 lpm)
Maximum Air Supply Pressure:	125 psig (8.6 bar)
Displacement Per Stroke:	.105 gal (.41 L)
Minimum Air Inlet Stork:	N/A
Maximum Particle Size:	1/8
Sound Pressure:	N/A
Operating Temperature:	BUNA

Construction

Bolted or Clamped:	BOLTED
Wetted Materials:	Aluminum
Diaphragm Materials:	N/A
Air Valve:	Aluminum
Ball Materials:	Buna, PTFE
Seat Materials:	Aluminum
O-ring Materials:	Buna , PTFE

Dimensions & Weights

Maximum Height:	12.5″
Maximum Width:	8.43″
Maximum Depth:	8.19″
Aluminum Weight:	25lb
Stainless Steel Weight:	N/A
Ductile Iron Weight:	N/A
Polypropylene Weight:	N/A

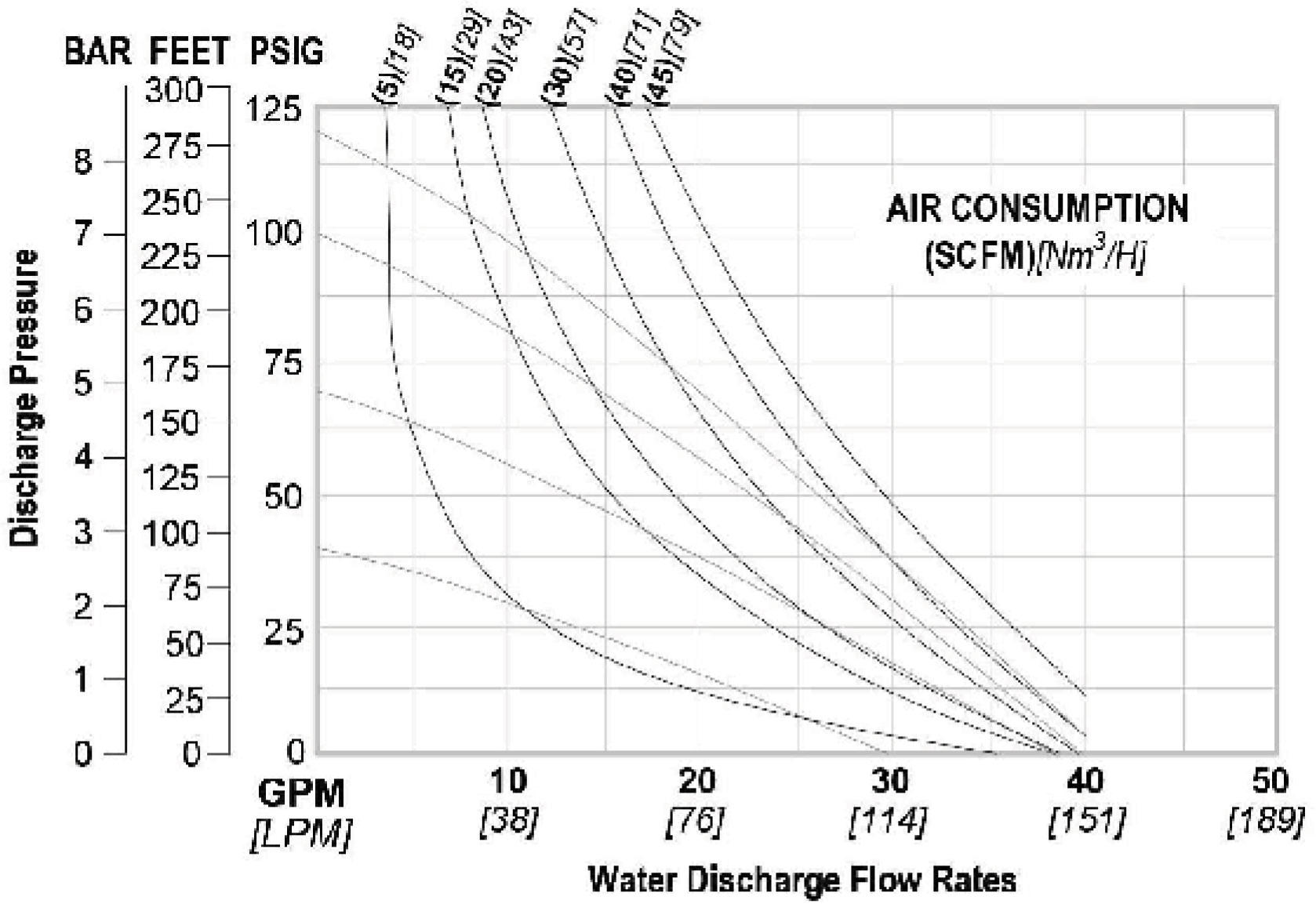

Pump Performance

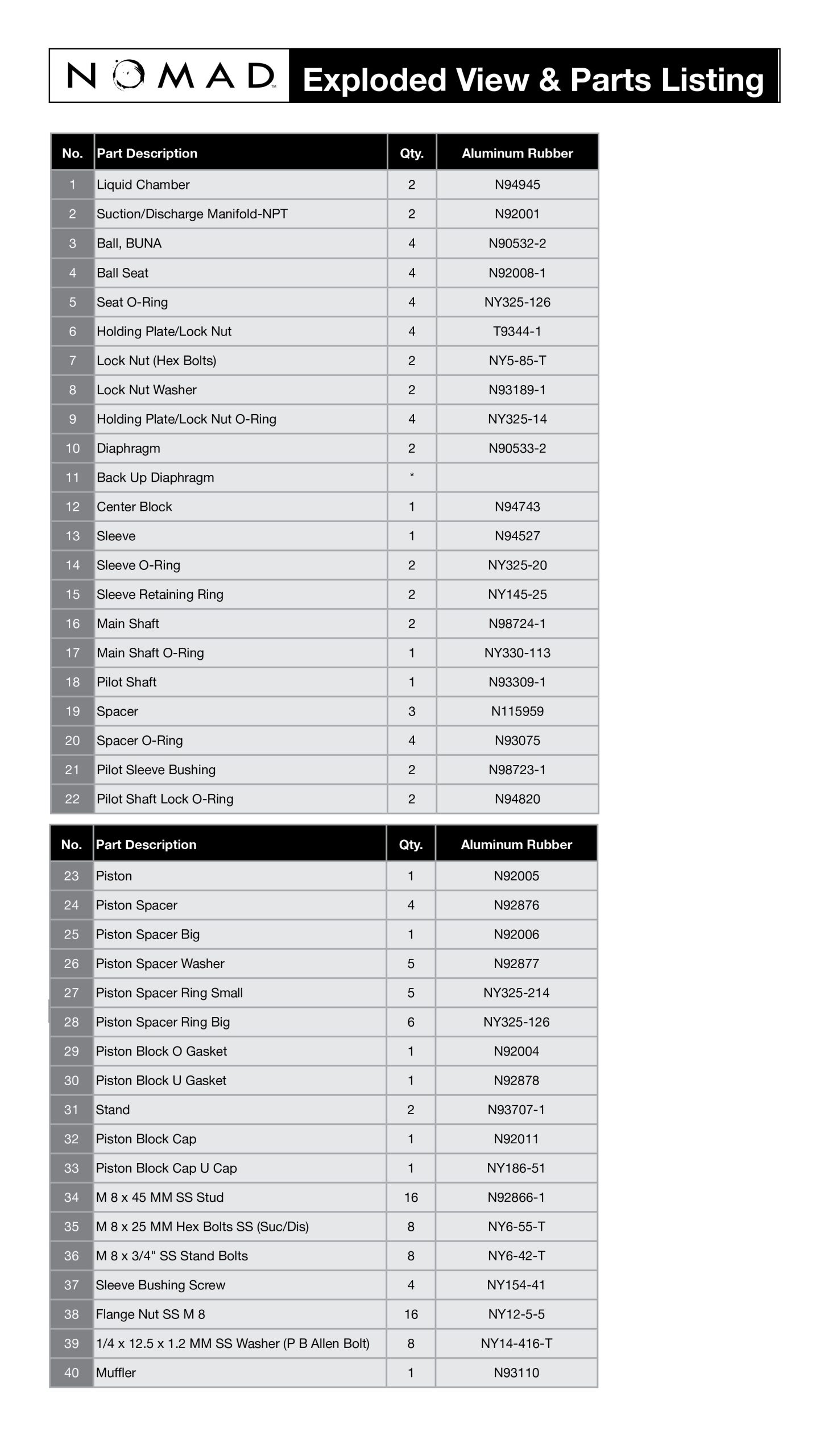

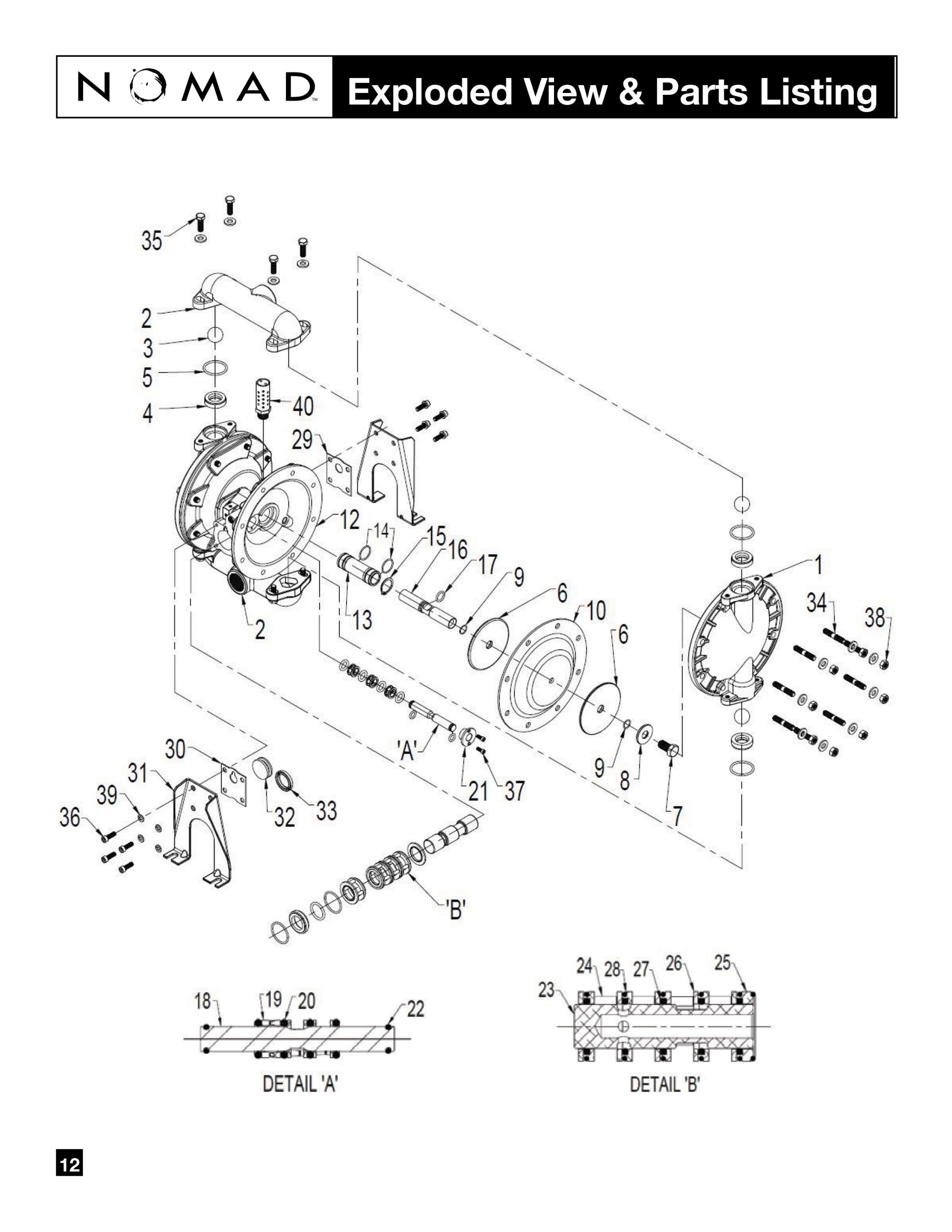

Pump Spare Parts

Pump Applications

Automotive, Ceramics, Chemical, Electronic/Semi, Food/Beverage, Mining/Construction, Petroleum, Pharmaceutical, Wastewater
