| Suction & Discharge Size: | FNPT 1/2″ (12.7 mm) Inlet and Discharge |
| Porting Location: | Side Port Standard |
| Connection Types: | NPT/BSP |
| Air Inlet & Air Exhaust Size: | 1/4″ |

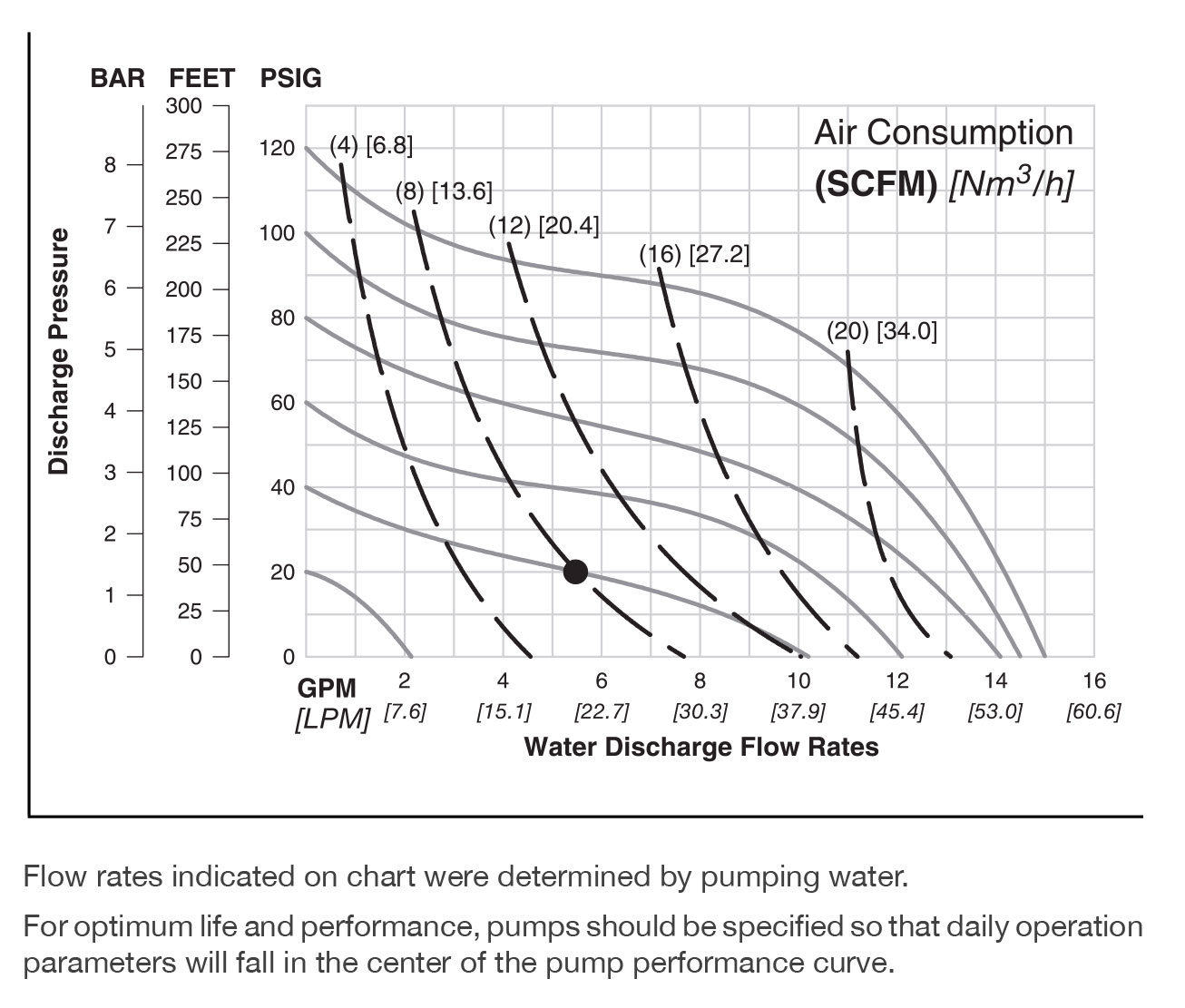

| Maximum Flow Rate: | 15.0 gpm (57 lpm) |
| Maximum Air Supply Pressure: | 125 psig (8.6 bar) |
| Displacement Per Stroke: | .027 gal (.10 l) |
| Minimum Air Inlet Stork: | N/A |
| Maximum Particle Size: | 1/16 |
| Sound Pressure: | N/A |
| Operating Temperature: | Neoprene -17.8° C to 93.3° C 0° F to 200° F, Buna-N -12.2° C to 82.2° C 10° F to 180° F , EPDM -51.1° C to 137.8° C -60° F to 280° F, Viton®-40° C to 176.2° C -40° F to 350° F, Santoprene®-40° C to 107.2° C -40° F to 225° F, Polyurethane 12.2° C to 65.6° C -10° F to 220° F, Hytrel® -28.9° C to 104.4° C -20° F to 220° F, PTFE 4.4° C to 104.4° C 40° F to 220° F |
| Bolted or Clamped: | BOLTED |
| Wetted Materials: | Polypropylene |
| Diaphragm Materials: | PTFE, Santoprene® |
| Air Valve: | Polypropylene |
| Ball Materials: | PTFE |
| Seat Materials: | Polypropylene |
| O-ring Materials: | Viton®, Encapsulated Viton® |
| Maximum Height: | 10.9 |
| Maximum Width: | 10.9 |
| Maximum Depth: | 7.9 |
| Aluminum Weight: | N/A |
| Stainless Steel Weight: | N/A |
| Ductile Iron Weight: | N/A |
| Polypropylene Weight: | 8 lbs (4 kg) |
