| Suction & Discharge Size: | 1.5″ (38.1 mm) Flanged |
| Porting Location: | Side Port Flanged |
| Connection Types: | ANSI/DIN |
| Air Inlet & Air Exhaust Size: | 1/2″ (13mm) |

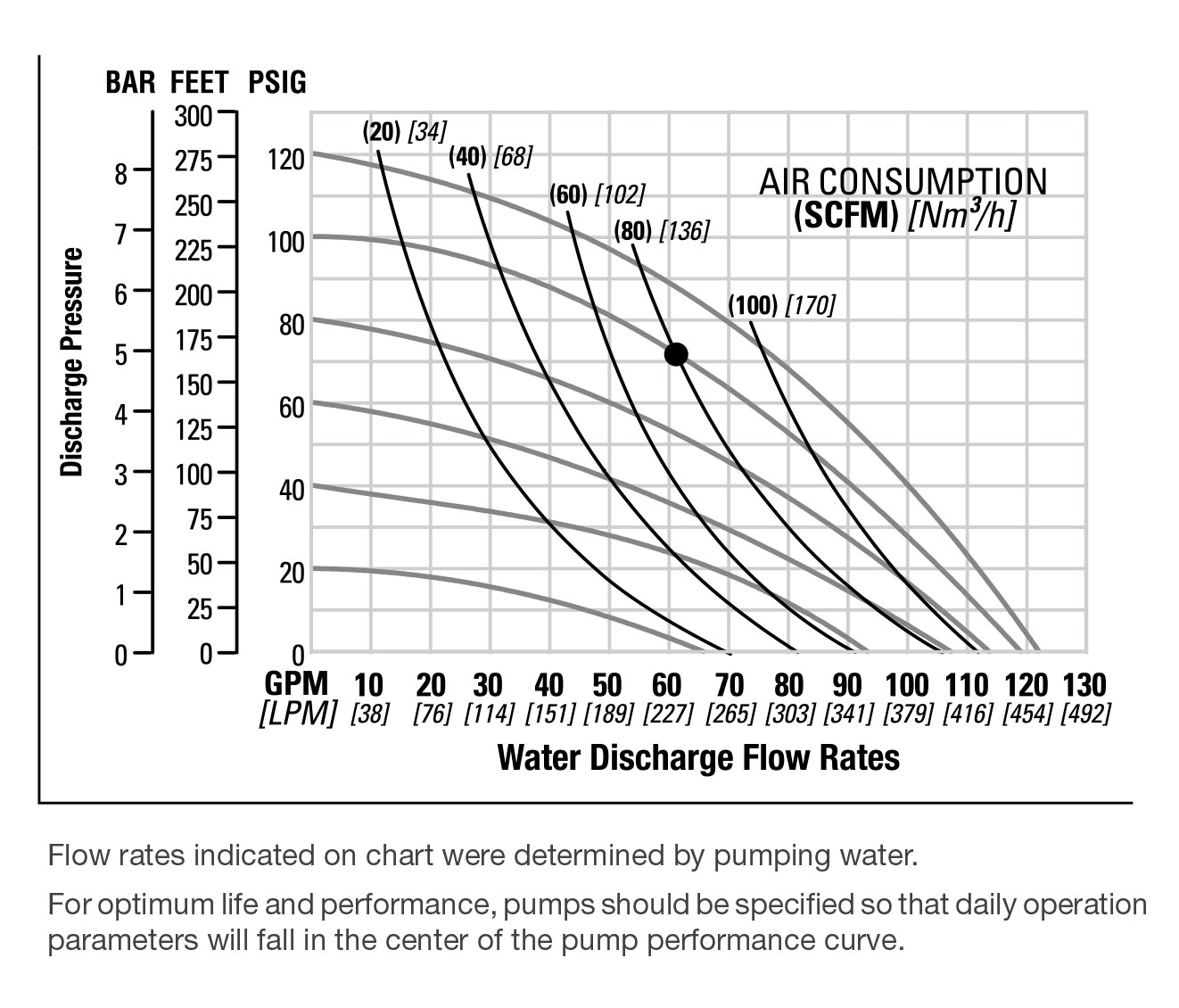

| Maximum Flow Rate: | 84 gpm (318 lpm) |
| Maximum Air Supply Pressure: | 125 psig (8.6 bar) |
| Displacement Per Stroke: | .15 gal (.59 l) |
| Minimum Air Inlet Stork: | N/A |
| Maximum Particle Size: | 1/4″ (6.4 mm) |
| Sound Pressure: | N/A |
| Operating Temperature: | Neoprene -17.8° C to 93.3° C 0° F to 200° F, Buna-N -12.2° C to 82.2° C 10° F to 180° F , EPDM -51.1° C to 137.8° C -60° F to 280° F, Viton®-40° C to 176.2° C -40° F to 350° F, Santoprene®-40° C to 107.2° C -40° F to 225° F, Polyurethane 12.2° C to 65.6° C -10° F to 220° F, Hytrel® -28.9° C to 104.4° C -20° F to 220° F, PTFE 4.4° C to 104.4° C 40° F to 220° F |
| Bolted or Clamped: | BOLTED |
| Wetted Materials: | Polypropylene |
| Diaphragm Materials: | PTFE, Santoprene® |
| Air Valve: | Polypropylene |
| Ball Materials: | PTFE |
| Seat Materials: | Polypropylene |
| O-ring Materials: | Viton®, Encapsulated Viton® |
| Maximum Height: | 26.3″ (668 mm) |
| Maximum Width: | 18.8″ (478 mm) |
| Maximum Depth: | 11.8″ (300 mm) |
| Aluminum Weight: | N/A |
| Stainless Steel Weight: | N/A |
| Ductile Iron Weight: | N/A |
| Polypropylene Weight: | 41 lbs (19 kg ) |
